SBR096 Sungrow: Your Guide to the Sungrow Home Battery
So, what exactly is the Sungrow SBR096? Think of it less like a single appliance and more like a set of Lego blocks for your home’s energy. It’s a high-voltage home battery designed to catch and store all that excess solar power your panels generate, so you can use it whenever you want.
You start with a solid 9.6kWh of storage, and if your needs grow, you can simply click more blocks into place. This flexibility is a huge reason it’s become such a popular choice for Australian homeowners looking to get serious about their energy independence.
Unpacking the Sungrow SBR096 Battery
At its heart, the Sungrow SBR096 solves the most common headache for solar owners: what to do with all that power you generate at midday. Instead of sending that valuable energy back to the grid for pennies, the battery saves it.
This means you can power your home through the evening, keep the lights on during cloudy spells, or have a reliable backup ready for a blackout. It’s all about using your own clean energy on your own terms.
This type of setup is called a Battery Energy Storage System (BESS), and it’s the key to getting the most out of your solar investment. If you want to dive deeper into the nuts and bolts, this complete guide to Battery Energy Storage Systems is a great resource.
The Power of a Modular Design
The real game-changer with the Sungrow SBR096 is its modularity. Lots of home batteries come in one fixed size. If you buy an EV or your family gets bigger, you’re stuck. Sungrow’s stackable design means your battery can grow right alongside you.
- The Starting Point: The system kicks off with three 3.2kWh battery modules, giving you that initial 9.6kWh capacity. For many Aussie families, that’s the perfect amount to cover evening usage.
- Expand When You’re Ready: Down the track, you can simply add more modules to increase your storage. There’s no need to replace the whole unit.
- A Future-Proof Investment: This approach lets you build a system that fits your budget and energy goals today, without worrying you’ll outgrow it tomorrow.
The ability to scale up from 9.6kWh to a massive 25.6kWh on a single system gives homeowners incredible flexibility. It makes sure your initial investment keeps paying off for years to come, no matter how your life changes.
Getting your head around the unique benefits of the Sungrow SBR096 is the first step toward smarter energy management. You can explore the different Sungrow battery options to find the perfect fit for your home.
Getting to Grips with the Technical Specs
To really understand what the Sungrow SBR096 battery can do for your home, it helps to pop the bonnet and look at the core numbers. These aren’t just dry technical details; they directly translate into how you use energy day in, day out.
The first number to know is its usable capacity, which starts at 9.6 kilowatt-hours (kWh). Think of this as the size of your energy fuel tank. For a typical Aussie family, that’s usually plenty to cover the evening energy rush – powering lights, the TV, and kitchen appliances long after the sun has gone down.
Just as important is its power output. The SBR096 can deliver a steady, continuous charge and discharge rate, which means it won’t stumble when you fire up power-hungry appliances. You can run the air conditioner or the oven on stored solar energy without a problem.
Here’s a quick rundown of the key details.
Sungrow SBR096 Key Specifications at a Glance
| Specification | Details |
|---|---|
| Battery Type | Lithium Iron Phosphate (LFP) |
| Base Usable Capacity | 9.6 kWh |
| Maximum Capacity (Expanded) | 25.6 kWh |
| Module Capacity | 3.2 kWh per module |
| Module Count | Starts with 3, expandable to 8 |
| Nominal Voltage | 192 V |
| Continuous Charge/Discharge | 30 A |
| Peak Charge/Discharge | 42 A for 10 seconds |
| Operating Temperature | -30°C to +50°C |
| Dimensions (W x H x D) | 625 x 545 x 330 mm |
| Weight | 114 kg (for the 9.6 kWh unit) |
| Protection Rating | IP55 |
These numbers confirm it’s a robust, flexible system built for real-world Australian homes.
Modularity: The Key to Future-Proofing
One of the smartest features of the Sungrow SBR096 is its modular design. A lot of batteries come in a fixed size, but this system is designed to grow with your family. It starts with three 3.2 kWh modules stacked together to create the base 9.6 kWh unit.
The real magic is that you can add more modules later on, boosting the total capacity all the way up to a massive 25.6 kWh. This scalability means your initial investment stays useful, even if you buy an electric vehicle or your energy needs climb.
This “building block” approach is brilliant. It means you don’t have to over-invest in a huge battery from day one. You can start with what you need now and easily add more capacity later, making it a financially sensible choice for long-term energy planning.
The Brains Behind the Battery: The BMS
At the heart of the SBR096 is its advanced Battery Management System (BMS). This is the onboard computer that acts as a guardian for the whole setup, constantly monitoring everything to optimise performance. Its job is to protect the battery cells from damage and ensure the system runs safely and efficiently for years.
The Sungrow SBR096 has played a huge role in Australia’s shift to renewables, with installations now powering over 400,000 homes. The BMS is a critical reason for this success because it’s built tough for the challenging Aussie climate. It continuously balances cell temperatures to prevent damage from overcharging or extreme heat, ensuring reliable performance whether it’s a scorching 40°C summer day or a frosty winter morning.
You can find out more about the SBR096’s proven reliability by checking out the details at HighFlow Connect.
A battery’s real test isn’t in a lab. It’s in the thick of an Australian summer heatwave or on a frosty winter morning. The Sungrow SBR096 is built to not just survive these conditions but thrive in them, delivering steady power exactly when you need it.
That resilience starts with its official operating temperature range, which is seriously wide: from a biting -30°C to a scorching +50°C. It means the battery is designed to perform reliably whether you’re in the Snowy Mountains or the Queensland tropics. This isn’t a minor detail; it ensures your energy storage won’t fail you during the very weather events you bought it to handle.
Active Temperature Management for Peak Performance
The SBR096 doesn’t just put up with extreme temperatures; it actively manages them. Its advanced Battery Management System (BMS) acts like the battery’s own climate control, constantly monitoring the temperature of individual cells.
If it senses things getting too hot during a summer afternoon charge, it can automatically ease back the charging speed to prevent overheating. This process, known as thermal derating, is a critical feature for both safety and longevity. It protects the sensitive Lithium Iron Phosphate (LFP) cells from heat damage, which is a leading cause of premature battery ageing.
By intelligently regulating its own temperature, the SBR096 safeguards your investment. This active management ensures the battery maintains high efficiency and a long service life, even after years of operating in demanding Australian conditions.
This built-in smarts gives you peace of mind that your system is working safely and correctly behind the scenes.
Built Tough for Local Conditions
Beyond its clever internal systems, the physical build of the Sungrow SBR096 is all about durability. The unit carries an IP55 protection rating, which confirms it’s well-sealed against dust and water.
- Dust Resistance: This is crucial for rural and semi-rural homes where dust is just a part of life.
- Water Protection: It can handle low-pressure water jets from any direction, so it’s protected from rain and whatever else the Aussie outdoors throws at it.
This tough physical design, combined with its sophisticated thermal management, proves the sbr096 sungrow isn’t some generic battery tweaked for Australia. It’s a solution designed from the ground up for our unique climate challenges, ensuring it delivers reliable, clean energy year after year. This focus on durability is a huge part of why Sungrow has earned such a trusted reputation across the country.
Connecting Your Battery to a Virtual Power Plant
Imagine your home battery doing more than just chipping away at your power bill. What if it could actively earn you money, too? That’s the simple idea behind a Virtual Power Plant, or VPP. It’s a way of turning your individual battery into part of a powerful, community-wide energy network.
Think of it like a neighbourhood energy co-op. On its own, your battery is great for your home. But when it’s connected to a VPP, it joins forces with hundreds or thousands of other batteries across the grid.
Together, this network of batteries can sell stored solar energy back to the grid during peak demand—those hot summer afternoons when the network is under strain and electricity is most valuable. This collective power helps stabilise the entire grid, reducing the need for old-school fossil fuel power plants to fire up. In return for sharing a bit of your stored energy, you get paid for it, usually as credits on your electricity bill.
Turning Your SBR096 into an Asset
The Sungrow SBR096 is perfectly suited for this role. Its smart technology and reliable performance make it an ideal team player in a VPP. Programs like HighFlow Connect are designed to integrate seamlessly with Sungrow hardware, turning your battery from a simple storage device into an active, income-generating asset.
The whole process is handled automatically by the VPP operator. They keep an eye on the grid and, when demand spikes, they can draw a small, controlled amount of energy from your battery. You always remain in control, setting a minimum backup reserve to ensure you’ve got plenty of power for your own needs, especially during a blackout.
Joining a VPP lets your sbr096 sungrow work smarter, not just harder. It earns you money for energy you probably wouldn’t have used anyway, helping to shorten the battery’s payback period and boost the return on your solar investment.

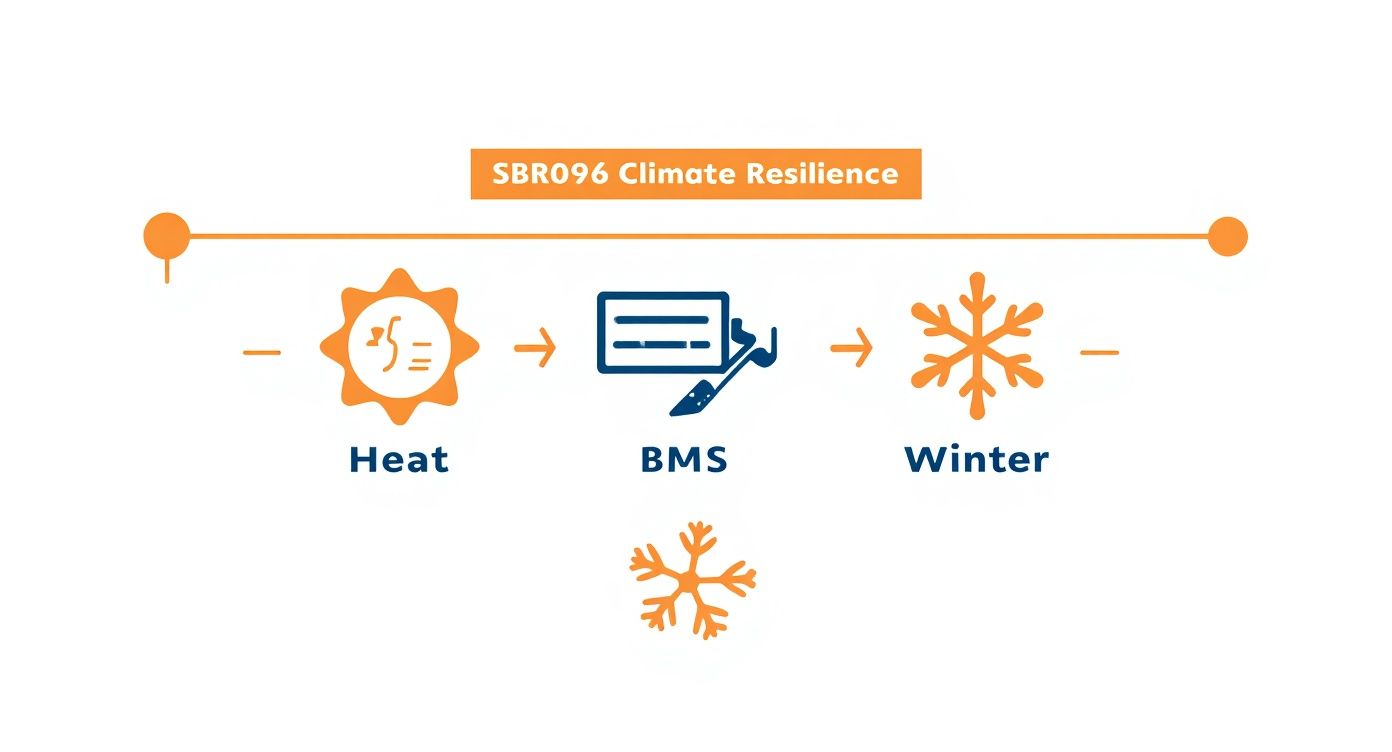

This infographic shows how the SBR096’s clever Battery Management System (BMS) is key to its resilience, protecting it from both extreme heat and cold.
This intelligent thermal regulation is essential for VPP participation. It ensures the battery can respond safely and efficiently when the grid needs it most, no matter the weather.
The Benefits of VPP Participation
Participating in a VPP offers real advantages beyond your standard solar savings. It creates a new revenue stream while supporting a cleaner, more stable grid for everyone.
- Earn Extra Income: Receive payments or bill credits for the energy your battery sends to the grid during high-demand events.
- Support Grid Stability: Help prevent blackouts and reduce the grid’s reliance on polluting power stations during peak times.
- Contribute to a Greener Future: By sharing your renewable energy, you play a direct part in building a more resilient and sustainable energy system for your community.
To put this in perspective, let’s compare the financial benefits of a standard solar and battery setup versus one that’s part of a VPP.
Potential VPP Earnings vs Standard Solar Savings
| Benefit | Standard Solar & Battery | Solar & Battery with VPP |
|---|---|---|
| Primary Goal | Self-consumption to reduce bills. | Self-consumption plus earning income. |
| Grid Interaction | Limited to standard feed-in tariffs. | Actively sells power during high-price events. |
| Source of Savings | Reduced electricity bill from using your own solar. | Bill reductions plus direct payments or credits. |
| Typical Annual Return | Reduces annual power costs significantly. | Reduces costs and can add hundreds of dollars in earnings. |
As you can see, the VPP adds a whole new layer of financial return. The financial perks are compelling, with many Australian households earning hundreds of dollars a year on top of their regular solar savings.
To see how your system could benefit, you can learn more about the Sungrow VPP program with HighFlow Connect and get a clear idea of the potential returns. It’s a simple connection that lets you make a much bigger impact with your solar investment.
The Installation Process and Safety Features
Putting a home battery on the wall isn’t a weekend DIY job. It’s a task for a skilled, certified professional who knows how to get everything connected safely so it performs day in, day out. The installation for a Sungrow SBR096 is a well-oiled process, designed to be smooth and efficient, with safety baked in from the very first step.
It all starts with a site assessment. Your installer will help you find the best spot for the unit, weighing up things like wall strength, proper ventilation, and making sure there’s enough clearance around it. A cool, dry place like a garage is usually the sweet spot, as it keeps the battery out of direct sun and harsh weather, letting it run at its best.
Once the location is locked in, the real work begins. This means securely mounting the battery modules, wiring them into your solar inverter, and linking the whole system to your home’s main switchboard. Getting this right is critical, which is why professional guidance on connecting solar panels to batteries is invaluable.
Engineered for Peace of Mind
Beyond the physical install, the sbr096 sungrow is loaded with safety features that are always on guard. Its Lithium Iron Phosphate (LFP) chemistry is a big one—it’s widely regarded as one of the most stable and safe choices for home energy storage, with a far lower risk of thermal runaway than other battery types.
The system is also built with multiple layers of protection. Think of it as an internal safety net that catches common electrical faults before they become problems, including:
- Over-voltage and under-voltage protection: Stops the battery cells from being charged or drained past their safe limits.
- Over-current protection: Shields the system from dangerously high electrical currents while charging or discharging.
- Short-circuit protection: Instantly cuts the power if a short circuit is detected, heading off damage and fire risk.
These built-in fail-safes are there to protect your home and family, no questions asked. To get a better handle on why this matters so much, have a look at our detailed guide on battery safety in Australian homes.
Every Sungrow SBR096 unit installed in Australia must comply with strict local standards, including AS/NZS 5139. This isn’t just a suggestion; it’s a requirement. This certification means the battery has been put through its paces with rigorous testing for electrical safety, fire resistance, and performance. It’s verified proof that your energy system is built to the highest safety benchmarks, giving you genuine peace of mind.
Why Do Installers and Homeowners Keep Choosing Sungrow?
When a particular brand becomes the go-to choice for both seasoned installers and everyday homeowners, you have to ask why. Sungrow’s dominance in the Australian market isn’t a fluke. It’s built on a solid foundation of proven reliability, smart engineering, and the kind of local support that actually matters when you need it.
The company has carved out a serious presence by consistently shipping gear that just works, especially in our tough local conditions. That kind of track record builds powerful word-of-mouth, turning early customers into advocates and giving installers the confidence to put their name behind the product.
A Reputation Built on Trust
The success of the Sungrow SBR096 battery isn’t just about impressive tech specs on a datasheet; it’s about delivering on promises. Homeowners need a system that quietly does its job day in, day out. Installers need hardware that’s straightforward to fit, well-supported, and isn’t going to drag them back for frustrating warranty calls.
Sungrow nails this with a few key advantages:
- Proven Reliability: The SBR096 uses stable LFP (Lithium Iron Phosphate) battery chemistry and a tough design that holds up to the Australian climate, ensuring it performs for the long haul.
- Strong Local Support: Having a dedicated Aussie team for tech support and warranty claims gives everyone peace of mind. You know there’s someone local to call if things go wrong.
- A Solid Warranty: The standard 10-year warranty isn’t just a piece of paper; it secures the long-term value of what is a significant investment for any household.
This blend of a quality product and real local backing is a powerful formula. It takes a lot of the guesswork and risk out of investing in home energy storage.
Sungrow’s market leadership isn’t just talk; it’s backed by hard data. The company has become a cornerstone of Australia’s residential battery scene, reflecting deep trust from both the people who install it and the people who live with it.
The Sungrow SBR096 is a huge part of this success. According to market analysis firm SunWiz, Sungrow captured a 17.1% market share of Australian battery installations. That makes it one of the top battery brands in a fiercely competitive space. Holding that position over several years shows its reputation for quality is well and truly earned. You can find more insights on the Australian battery market on pv-magazine-australia.com.
Your Questions Answered: The Sungrow SBR096
Even with all the details, a few practical questions always come up when you’re thinking about how a battery like the Sungrow SBR096 fits into your home. Here are straight answers to the ones we hear most from Australian homeowners.
Can I Add More Battery Modules to My SBR096 Later On?
Yes, you can. This is one of the best features of the sbr096 sungrow system. Its clever modular design means you can start with the base 9.6 kWh unit, which is made up of three individual modules.
Down the track, if your energy needs grow—maybe you get an electric vehicle or the family gets bigger—you can simply add more 3.2 kWh modules. A single stack can grow to eight modules in total, giving you a hefty 25.6 kWh of storage. It’s a genuinely future-proof setup.
What’s the Warranty on the Sungrow SBR096?
The Sungrow SBR096 comes with a solid 10-year product and performance warranty. This is the standard you should expect for a quality residential battery in Australia and gives you real peace of mind.
What does this actually mean? It guarantees the battery will hold onto a certain amount of its original storage capacity—usually 70%—after a decade of work. This ensures your system keeps delivering real energy savings and reliable backup for years, protecting your investment.
This strong warranty is a big reason why so many homeowners feel confident choosing Sungrow.
Which Inverters Work with the SBR096 Battery?
For the smoothest performance, the SBR096 is built to pair perfectly with Sungrow’s own hybrid inverters, like the popular SH-RS series. When you stick with a full Sungrow ecosystem, you know every part is designed to talk to each other without any hiccups.
If you’re thinking of using an inverter from another brand, checking compatibility is critical. Your accredited installer has access to Sungrow’s latest official lists to make sure the two will work together safely and effectively.
How Much Can I Realistically Earn from a VPP?
The income you can make from a Virtual Power Plant (VPP) isn’t set in stone. It depends on where you live, your electricity retailer’s program, and how often the grid needs a hand. But for many battery owners, it’s a real and growing benefit.
Many Australian households in VPPs are seeing earnings of several hundred dollars per year. This is extra income, paid on top of the savings you’re already making by using your own solar power at night. By joining a VPP, you can shorten the payback period on your sbr096 sungrow battery and get a much better return on your investment overall.
Ready to turn your solar system into an active asset? With HighFlow Connect, you can join a flexible Virtual Power Plant that puts you in control and rewards you for supporting the grid. Learn how you can start earning more from your Sungrow battery today at https://highflowconnect.com.au.
